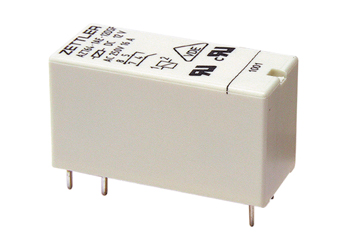

AZ764H - Power Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
16A
Switched Power (max.)
4.000 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
250 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

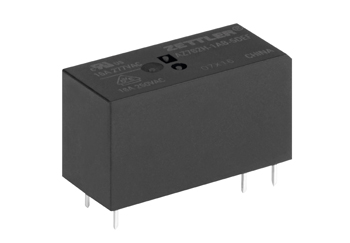

AZ762H - Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
184A
Switched Power (max.)
4.600 VA
Nominal Coil Voltage
5 up to 60 VDC
Nominal Coil Power
from 250 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

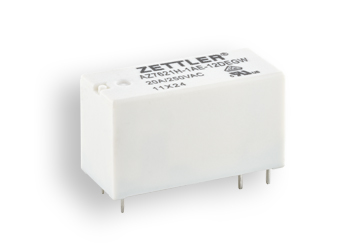

AZ7621H - Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
20A
Switched Power (max.)
5.000 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
410 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29,2 x 12,8 x 16 mm
Read More

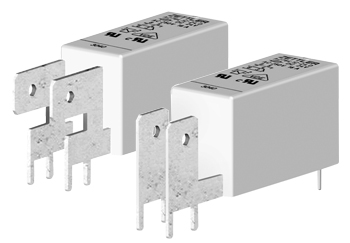

AZ764F - Power Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
20A
Switched Power (max.)
5.000 VA
Nominal Coil Voltage
5 up to 24 VDC
Nominal Coil Power
250 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

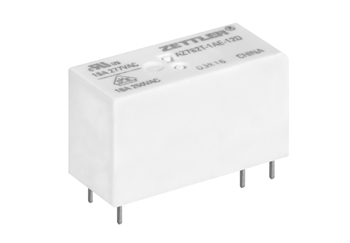

AZ762T - Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
16A
Switched Power (max.)
4.432VA
Nominal Coil Voltage
5 up to 110 VDC
Nominal Coil Power
from 400 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

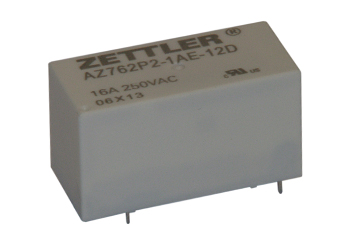

AZ762P - Power Relay - active -

Switching Voltage (max.)
350 VAC
Switching Current (max.)
20A
Switched Power (max.)
5.000 VA
Nominal Coil Voltage
3 up to 24 VDC
Nominal Coil Power
from 400 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

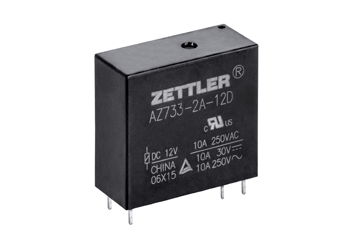

AZ733 - Power Relay - active -

Switching Voltage (max.)
380 VAC
Switching Current (max.)
12A
Switched Power (max.)
2.500 VA
Nominal Coil Voltage
3 up to 60 VDC
Nominal Coil Power
from 530 mW
Contact Configuration
2 Form A (DPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 13 x 26,3 mm
Read More

AZ733W - Power Relay / Solar Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
12A
Switched Power (max.)
3.324 VA
Nominal Coil Voltage
3 up to 60 VDC
Nominal Coil Power
from 800 mW
Contact Configuration
2 Form A (DPST/NO)
Contact Gap
1,5mm
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 13 x 26,3 mm
Read More

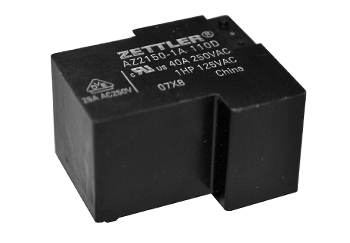

AZ2150 - High Power Relay - active -

Switching Voltage (max.)
300 VAC
Switching Current (max.)
40A
Switched Power (max.)
10.000 VA
Nominal Coil Voltage
5 up to 110 VDC
Nominal Coil Power
from 840 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
31,8 x 26,9 x 19,1 mm
Read More

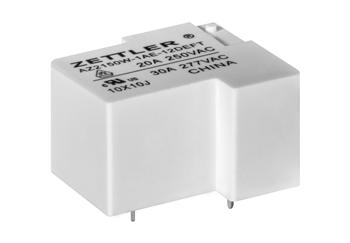

AZ2150W - High Power Relay / Solar Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
30A
Switched Power (max.)
8.310 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
1,1 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
1,75mm
Type of Enclosure
Flux proof
Dimensions L x W x H
31,8 x 26,9 x 19,1 mm
Read More

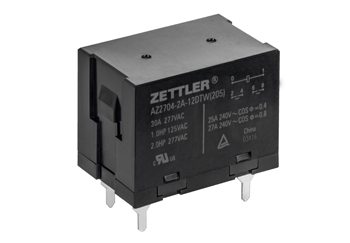

AZ2704 - High Power Relay / Solar Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
27A
Switched Power (max.)
6.925 VA
Nominal Coil Voltage
3 up to 200 VDC
6 up to 240 VAC
Nominal Coil Power
from 1,8 W
from 1,9 VA
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
3mm
Type of Enclosure
Flux proof
Dimensions L x W x H
50,5 x 33,5 x 36 mm
Read More

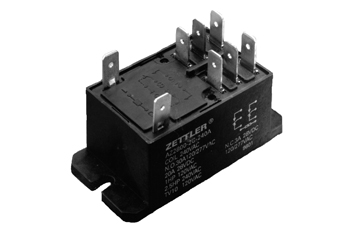

AZ2800 - High Power Relay - active -

Switching Voltage (max.)
600 VAC
Switching Current (max.)
40A
Switched Power (max.)
11.080 VA
Nominal Coil Voltage
6 up to 110 VDC
12 up to 277 VAC
Nominal Coil Power
from 1,6 W
4,0 VA
Contact Configuration
2 Form A (DPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
68,6 x 34,5 x 37,8 mm
Read More

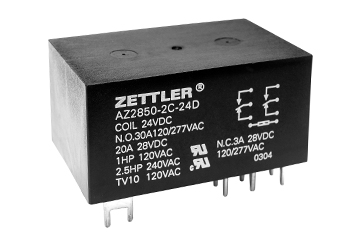

AZ2850 - High Power Relay - active -

Switching Voltage (max.)
600 VAC
Switching Current (max.)
40A
Switched Power (max.)
11.080 VA
Nominal Coil Voltage
6 up to 110 VDC
12 up to 277 VAC
Nominal Coil Power
from 1,6 W
4,0 VA
Contact Configuration
2 Form A (DPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
52 x 33,8 x 30,5 mm
Read More

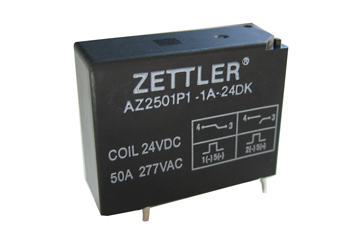

AZ2501P1 - High Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
50A
Switched Power (max.)
13.850 VA
Nominal Coil Voltage
6 up to 48 VDC
Nominal Coil Power
1,5W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
39,3 x 15,3 x 30,5 mm
Read More

AZ2501P2 - High Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
50A
Switched Power (max.)
13.850 VA
Nominal Coil Voltage
6 up to 48 VDC
Nominal Coil Power
3,0 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
39,3 x 15,3 x 30,5 mm
Read More

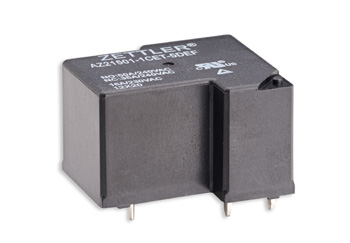

AZ21501 - High Power Relay - active -

Switching Voltage (max.)
300 VAC
Switching Current (max.)
50A
Switched Power (max.)
12.000 VA
Nominal Coil Voltage
3 up to 110 VDC
Nominal Coil Power
1,5 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
32,5 x 27,6 x 20,5 mm
Read More

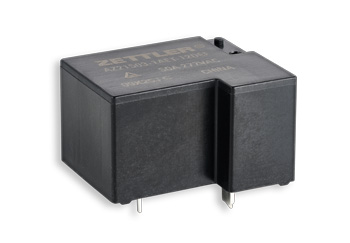

AZ21503 - High Power Relay - active -

Switching Voltage (max.)
277 VAC
Switching Current (max.)
50A
Switched Power (max.)
13.850 VA
Nominal Coil Voltage
12 up to 24 VDC
Nominal Coil Power
0,9 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
0,8mm
Type of Enclosure
Flux proof
Dimensions L x W x H
32,2 x 27,2 x 19,3 mm
Read More

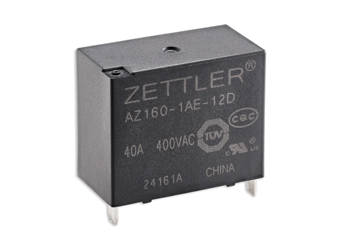

AZ160 - High Power Relay - active -

Switching Voltage (max.)
480 VAC
Switching Current (max.)
60A
Switched Power (max.)
28.800 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
0,9 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
0,8mm
Type of Enclosure
Flux proof
Dimensions L x W x H
30,4 x 15,9 x 25,15 mm
Read More

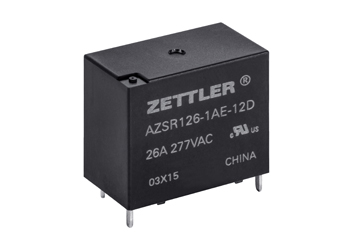

AZSR126 - Solar Relay - active -

Switching Voltage (max.)
277 VAC
Switching Current (max.)
31A
Switched Power (max.)
8.587 VA
Nominal Coil Voltage
9 up to 24 VDC
Nominal Coil Power
1,4 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
1,8mm
Type of Enclosure
Flux proof
Dimensions L x W x H
30,4 x 15,9 x 23,3 mm
Read More

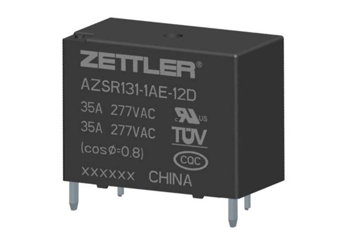

AZSR131 - Solar Relay - active -

Switching Voltage (max.)
277 VAC
Switching Current (max.)
35A
Switched Power (max.)
9.695 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
1,4 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
2,3mm
Type of Enclosure
Flux proof
Dimensions L x W x H
30,4 x 15,9 x 25,15 mm
