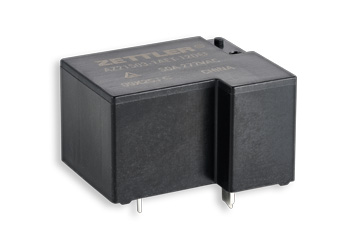

Relays Series
AZ21503
Category
High Power Relay
Switching Voltage (max.)
277VAC
Switching Current (max.)
60A
Switched Power (max.)
16.620 VA
16.620 VA
Nominal Coil Voltage
12 up to 24 VDC
12 up to 24 VDC
Nominal Coil Power
0,9 W
0,9 W
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
0,8mm
Dimensions L x W x H
32,2 x 27,2 x 19,3 mm
