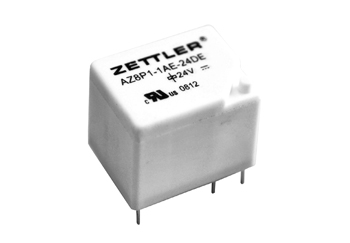

AZ8P - Power Relay - active -

Switching Voltage (max.)
300 VAC
Switching Current (max.)
10A
Switched Power (max.)
2.500 VA
Nominal Coil Voltage
3 up to 60 VDC
Nominal Coil Power
from 1,1 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Epoxy sealed
Dimensions L x W x H
21,2 x 16,2 x 14,7 mm
Read More

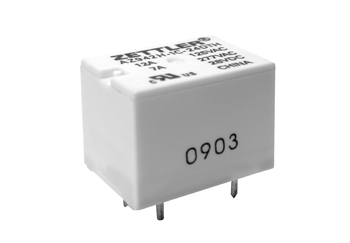

AZ942H - Power Relay - active -

Switching Voltage (max.)
300 VAC
Switching Current (max.)
16A
Switched Power (max.)
2.770 VA
Nominal Coil Voltage
3 up to 48 VDC
Nominal Coil Power
360 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
22 x 16,3 x 16,5 mm
Read More

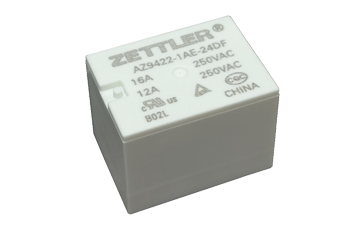

AZ9422 - Power Relay - active -

Switching Voltage (max.)
277 VAC
Switching Current (max.)
20A
Switched Power (max.)
4.700 VA
Nominal Coil Voltage
3 up to 48 VDC
Nominal Coil Power
360 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
22 x 16 x 16,6 mm
Read More

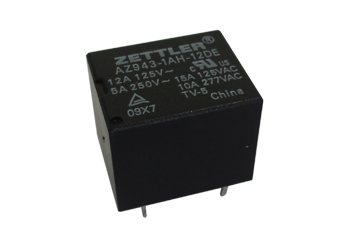

AZ943 - Power Relay - active -

Switching Voltage (max.)
377 VAC
Switching Current (max.)
15A
Switched Power (max.)
2.770 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
360 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
19 x 15,3 x 15,7 mm
Read More

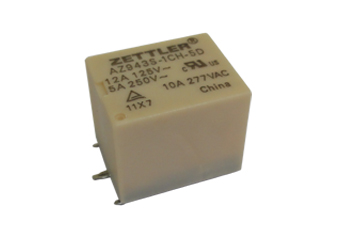

AZ943S - Power Relay - active -

Switching Voltage (max.)
300 VAC
Switching Current (max.)
15A
Switched Power (max.)
2.770 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
360 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
19,25 x 15,57 x 17,17 mm
Read More

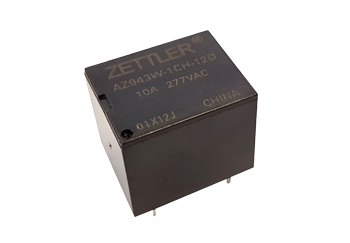

AZ943W - Power Relay - active -

Switching Voltage (max.)
277 VAC
Switching Current (max.)
10A
Switched Power (max.)
2.770 VA
Nominal Coil Voltage
6 up to 24 VDC
Nominal Coil Power
from 533 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
19 x 15,3 x 16 mm
Read More

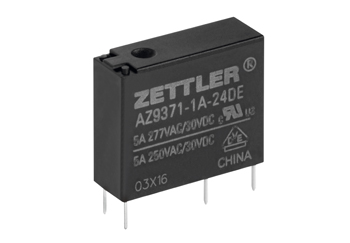

AZ9371 - Power Relay - active -

Switching Voltage (max.)
277 VAC
Switching Current (max.)
10A
Switched Power (max.)
2.770 VA
Nominal Coil Voltage
3 up to 24 VDC
Nominal Coil Power
200 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
20,5 x 7,2 x 15,3 mm
Read More

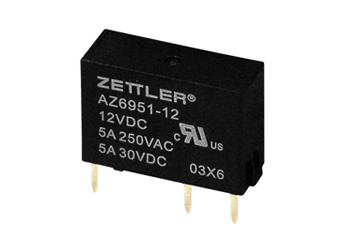

AZ6951 - Power Relay - active -

Switching Voltage (max.)
250 VAC
Switching Current (max.)
5A
Switched Power (max.)
1.250 VA
Nominal Coil Voltage
5 up to 24 VDC
Nominal Coil Power
100 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Epoxy sealed
Dimensions L x W x H
18,5 x 6,5 x 12,4 mm
Read More

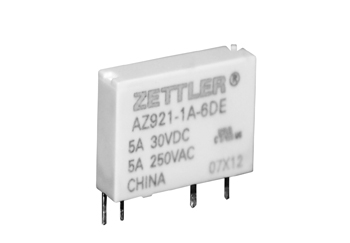

AZ921 - Power Relay - active -

Switching Voltage (max.)
250 VAC
Switching Current (max.)
5A
Switched Power (max.)
1.250 VA
Nominal Coil Voltage
5 up to 24 VDC
Nominal Coil Power
from 120 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Epoxy sealed
Dimensions L x W x H
20,3 x 5,3 x 12,8 mm
Read More

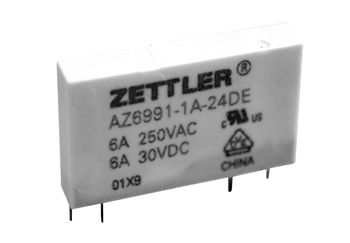

AZ6991 - Power Relay - active -

Switching Voltage (max.)
277 VAC
Switching Current (max.)
8A
Switched Power (max.)
2.216 VA
Nominal Coil Voltage
5 up to 60 VDC
Nominal Coil Power
from 170 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
28 x 5 x 15 mm
Read More

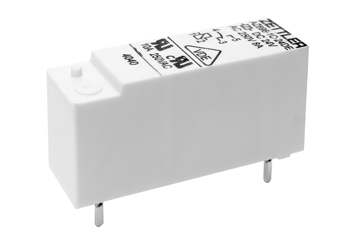

AZ696 - Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
10A
Switched Power (max.)
2.500 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
from 220 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
30 x 10 x 16,2 mm
Read More

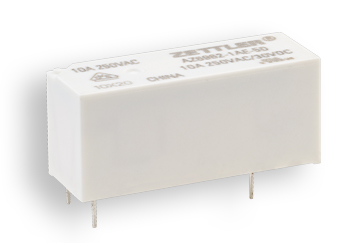

AZ6962 - Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
10A
Switched Power (max.)
2.500 VA
Nominal Coil Voltage
5 up to 60 VDC
Nominal Coil Power
from 220 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
28,5 x 10,1 x 12,5 mm
Read More

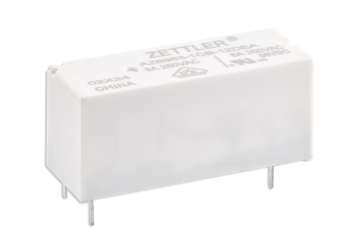

AZ6963 - Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
10A
Switched Power (max.)
2.500 VA
Nominal Coil Voltage
5 up to 24 VDC
Nominal Coil Power
from 220 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
28,8 x 10,1 x 12,5 mm
Read More

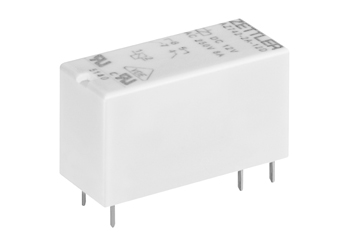

AZ742 - Power Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
10A
Switched Power (max.)
2.000 VA
Nominal Coil Voltage
3 up to 110 VDC
12 up to 240 VAC
Nominal Coil Power
from 400 mW
0,75 VA
Contact Configuration
2 Form A (DPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

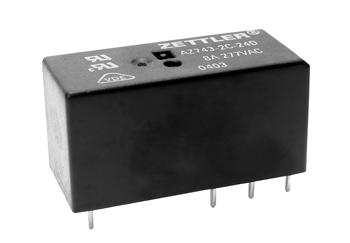

AZ743 - Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
10A
Switched Power (max.)
2.770 VA
Nominal Coil Voltage
5 up to 110 VDC
24 up to 230 VAC
Nominal Coil Power
from 400 mW
0,75 VA
Contact Configuration
2 Form A (DPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

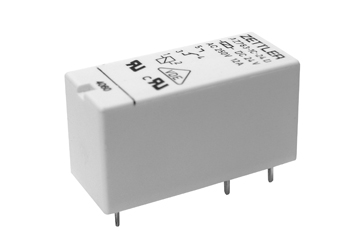

AZ763 - Power Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
12A
Switched Power (max.)
3.000 VA
Nominal Coil Voltage
3 up to 110 VDC
12 up to 240 VAC
Nominal Coil Power
from 400 mW
0,75 VA
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

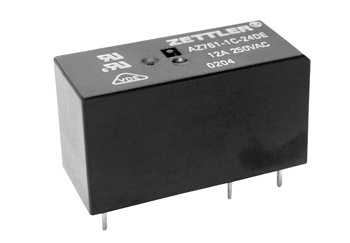

AZ761 - Power Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
12A
Switched Power (max.)
3.324 VA
Nominal Coil Voltage
5 up to 110 VDC
24 up to 230 VAC
Nominal Coil Power
from 250 mW
0,75 VA
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

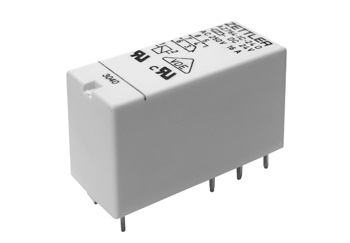

AZ764 - Power Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
20A
Switched Power (max.)
5.000 VA
Nominal Coil Voltage
3 up to 110 DC
12 up to 240 AC
Nominal Coil Power
from 400 mW
0,75 VA
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

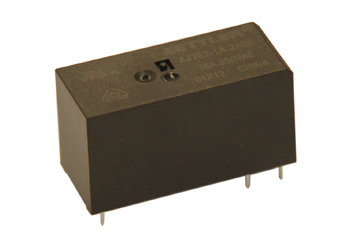

AZ762 - Power Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
20A
Switched Power (max.)
5.540 VA
Nominal Coil Voltage
5 up to 110 VDC
24 up to 230 VAC
Nominal Coil Power
from 250 mW
0,75 VA
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29 x 12,7 x 15,7 mm
Read More

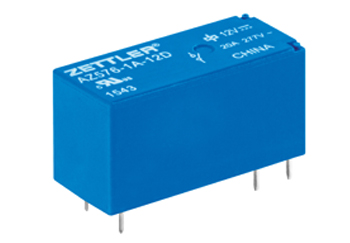

AZ576 - Power Relay - active -

Switching Voltage (max.)
277 VAC
Switching Current (max.)
20A
Switched Power (max.)
5.540 VA
Nominal Coil Voltage
5 up to 110 VDC
Nominal Coil Power
400 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
29,3 x 12,7 x 15,3 mm
