Relays Series

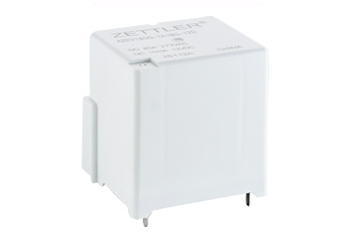

AZEV180G
Category
EV-Charging Relay
Switching Voltage (max.)
277VAC
Switching Current (max.)
80A
Switched Power (max.)
22.160 VA
22.160 VA
100 W
Nominal Coil Voltage
6 up to 24 VDC
6 up to 24 VDC
Nominal Coil Power
from 1,9 W
from 1,9 W
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
3,6mm
Dimensions L x W x H
41 x 36 x 43 mm
