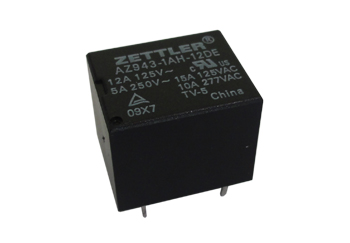

Relays Series
AZ943
Category
Power Relay
Switching Voltage (max.)
377VAC
Switching Current (max.)
15A
Switched Power (max.)
2.770 VA
2.770 VA
280 W
Nominal Coil Voltage
5 up to 48 VDC
5 up to 48 VDC
Nominal Coil Power
360 mW
360 mW
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
-
Dimensions L x W x H
19 x 15,3 x 15,7 mm
