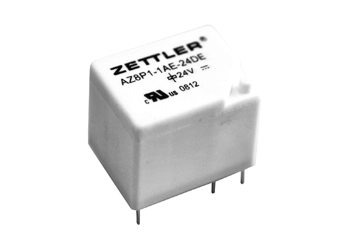

Relays Series
AZ8P
Category
Power Relay
Switching Voltage (max.)
300VAC
Switching Current (max.)
10A
Switched Power (max.)
2.500 VA
2.500 VA
240 W
Nominal Coil Voltage
3 up to 60 VDC
3 up to 60 VDC
Nominal Coil Power
from 1,1 W
from 1,1 W
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Epoxy sealed
Contact Gap
-
Dimensions L x W x H
21,2 x 16,2 x 14,7 mm
