Relays

Product search

Relay Series

Status

Category

Contact Configuration

Switching Voltage min. …V

Type of Enclosure

Contact Gap ≥ … mm

Switching Current min. …A

Dimensions LxWxH ≤ … mm

Reset filter
Read More

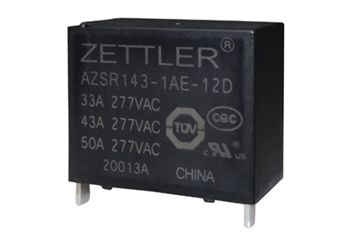

AZSR143 - Solar-Relais - active -

Switching Voltage (max.)
480 VAC
Switching Current (max.)
50A
Switched Power (max.)
19.200 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
1,6 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
2mm
Type of Enclosure
Flux proof
Dimensions L x W x H
30,4 x 15,9 x 25,15 mm
Read More

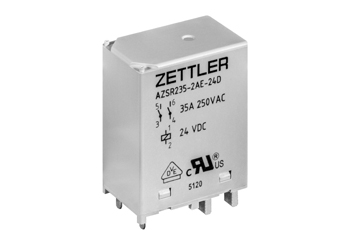

AZSR235 - Solar Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
35A
Switched Power (max.)
9.695 VA
Nominal Coil Voltage
5 up to 24 VDC
Nominal Coil Power
480 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
2,05mm
Type of Enclosure
Flux proof
Dimensions L x W x H
40 x 25 x 49,2 mm
Read More

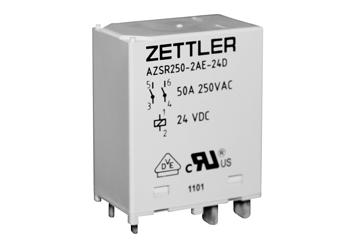

AZSR250 - Solar Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
50A
Switched Power (max.)
13.850 VA
Nominal Coil Voltage
5 up to 24 VDC
Nominal Coil Power
480 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
1,85mm
Type of Enclosure
Flux proof
Dimensions L x W x H
40 x 25 x 49,2 mm
Read More

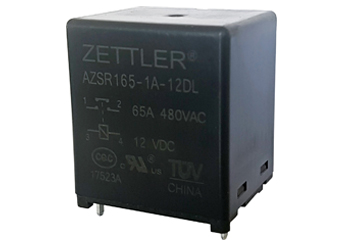

AZSR165 - Solar Relay - active -

Switching Voltage (max.)
690 VAC
Switching Current (max.)
80A
Switched Power (max.)
43.200 VA
Nominal Coil Voltage
6 up to 24 VDC
Nominal Coil Power
2,2 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
3mm
Type of Enclosure
Flux proof
Dimensions L x W x H
38 x 33 x 41,5 mm
Read More

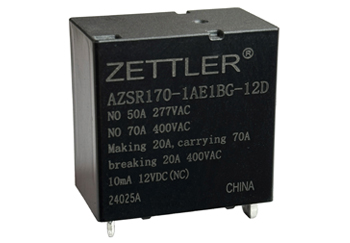

AZSR170 - Solar Relay - active -

Switching Voltage (max.)
600 VAC
Switching Current (max.)
70A
Switched Power (max.)
42.000 VA
Nominal Coil Voltage
6 up to 48 VDC
Nominal Coil Power
2,5 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
3,42mm
Type of Enclosure
Flux proof
Dimensions L x W x H
33,1 x 20,1 x 32,5 mm
Read More

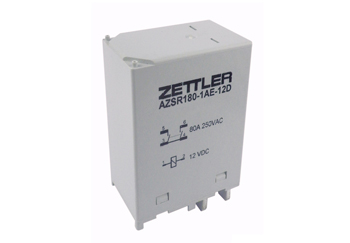

AZSR180 - Solar Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
80A
Switched Power (max.)
22.160 VA
Nominal Coil Voltage
12 and 24 VDC
Nominal Coil Power
480 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
2,05mm
Type of Enclosure
Flux proof
Dimensions L x W x H
40 x 25 x 49,2 mm
Read More

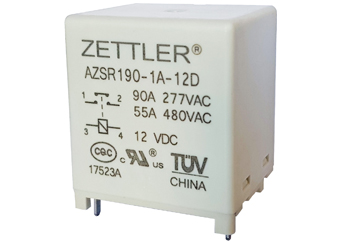

AZSR190 - Solar Relay - active -

Switching Voltage (max.)
800 VAC
Switching Current (max.)
100A
Switched Power (max.)
48.000 VA
Nominal Coil Voltage
6 up to 24 VDC
Nominal Coil Power
1,92 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
3,6mm
Type of Enclosure
Flux proof
Dimensions L x W x H
38 x 33 x 43 mm
Read More

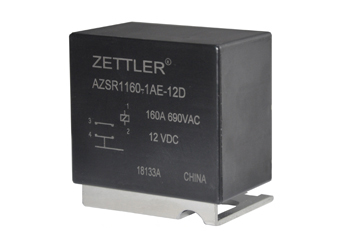

AZSR1160 - Solar-Relais - active -

Switching Voltage (max.)
690 VAC
Switching Current (max.)
160A
Switched Power (max.)
110.400 VA
Nominal Coil Voltage
6 up to 48 VDC
Nominal Coil Power
3,0 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
3,6mm
Type of Enclosure
Flux proof
Dimensions L x W x H
62 x 63,3 x 41,7 mm
Read More

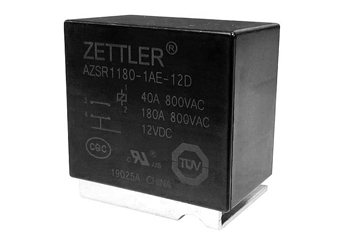

AZSR1180 - Solar-Relais - active -

Switching Voltage (max.)
920 VAC
Switching Current (max.)
180A
Switched Power (max.)
165.600 VA
Nominal Coil Voltage
6 up to 48 VDC
Nominal Coil Power
3,0 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
3,6mm
Type of Enclosure
Flux proof
Dimensions L x W x H
62 x 63,3 x 41,7 mm
Read More

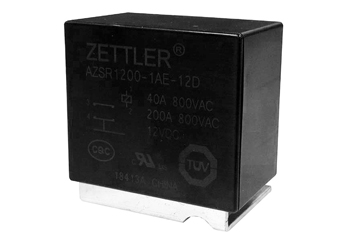

AZSR1200 - Solar-Relais - active -

Switching Voltage (max.)
920 VAC
Switching Current (max.)
200A
Switched Power (max.)
184.000 VA
Nominal Coil Voltage
6 up to 48 VDC
Nominal Coil Power
3,0 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
3,6mm
Type of Enclosure
Flux proof
Dimensions L x W x H
62 x 63,3 x 41,7 mm
Read More

AZEV116 - EV-Charging Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
16A
Switched Power (max.)
6.400 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
1,55 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
2,25mm
Type of Enclosure
Flux proof
Dimensions L x W x H
35 x 16 x 27,9 mm
Read More

AZEV132 - EV-Charging Relay - active -

Switching Voltage (max.)
400 VAC
Switching Current (max.)
40A
Switched Power (max.)
12.800 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
1,55 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
2,25mm
Type of Enclosure
Flux proof
Dimensions L x W x H
35 x 16 x 27,9 mm
Read More

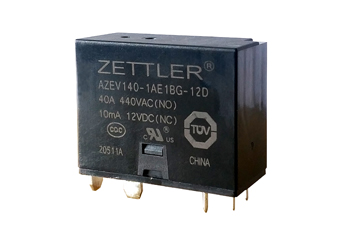

AZEV140 - EV-Charging Relay - active -

Switching Voltage (max.)
440 VAC
Switching Current (max.)
50A
Switched Power (max.)
22.000 VA
Nominal Coil Voltage
5 up to 48 VDC
Nominal Coil Power
2,1 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
2,25mm
Type of Enclosure
Flux proof
Dimensions L x W x H
35 x 16 x 28 mm
Read More

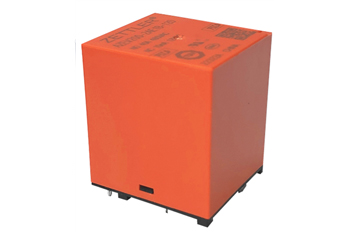

AZEV200 - EV-Charging Relay - active -

Switching Voltage (max.)
480 VAC
Switching Current (max.)
40A
Switched Power (max.)
19.200 VA
Nominal Coil Voltage
6 up to 48 VDC
Nominal Coil Power
2,6 W
Contact Configuration
2 Form A (DPST/NO)
Contact Gap
3,42mm
Type of Enclosure
Flux proof
Dimensions L x W x H
36,5 x 33,8 x 41,5 mm
Read More

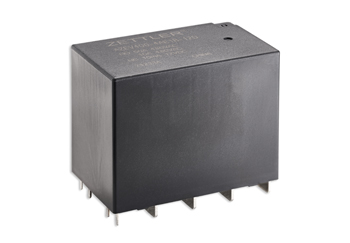

AZEV400 - EV-Charging Relay - active -

Switching Voltage (max.)
480 VAC
Switching Current (max.)
50A
Switched Power (max.)
41.500 VA
Nominal Coil Voltage
6 up to 24 VDC
Nominal Coil Power
4,8 W
Contact Configuration
2 Form A (DPST/NO)
Contact Gap
4mm
Type of Enclosure
Flux proof
Dimensions L x W x H
58,6 x 35 x 45,3 mm
Read More

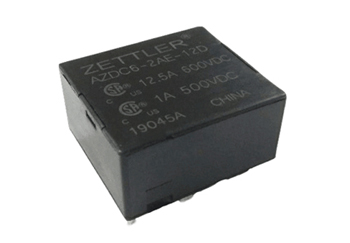

AZDC6 - DC-Power Relay - active -

Switching Voltage (max.)
600 VDC
Switching Current (max.)
12,5A
Switched Power (max.)
Nominal Coil Voltage
6 up to 48 VDC
Nominal Coil Power
ab 1,39 W
Contact Configuration
2 x 1 Form A (SPST/NO)
Contact Gap
3,6mm
Type of Enclosure
Flux proof
Dimensions L x W x H
33,9 x 30,6 x 16 mm
Read More

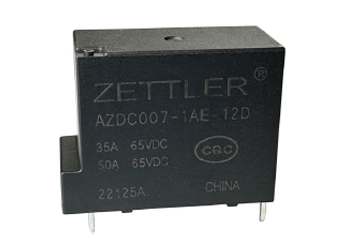

AZDC007 - DC-Power Relay - active -

Switching Voltage (max.)
65 VDC
Switching Current (max.)
50A
Switched Power (max.)
Nominal Coil Voltage
5 up to 60 VDC
Nominal Coil Power
1,6 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
1,85mm
Type of Enclosure
Flux proof
Dimensions L x W x H
33,4 x 15,9 x 25,15 mm
Read More

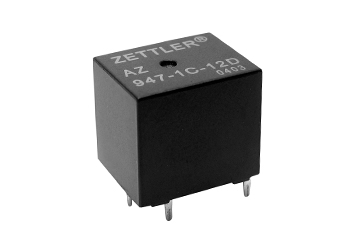

AZ947 - Automotive Relay - active -

Switching Voltage (max.)
42 VDC
Switching Current (max.)
20A
Switched Power (max.)
1.250 VA
Nominal Coil Voltage
6 up to 24 VDC
Nominal Coil Power
600 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Flux proof
Dimensions L x W x H
15,7 x 12,3 x 14 mm
Read More

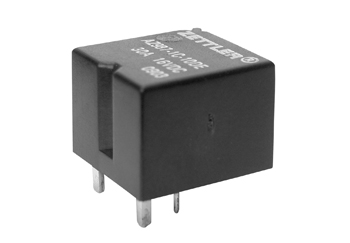

AZ987 - Automotive Relay - active -

Switching Voltage (max.)
16 VDC
Switching Current (max.)
30A
Switched Power (max.)
Nominal Coil Voltage
10 up to 12 VDC
Nominal Coil Power
from 550 mW
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Epoxy sealed
Dimensions L x W x H
12,3 x 13,2 x 10,2 mm
Read More

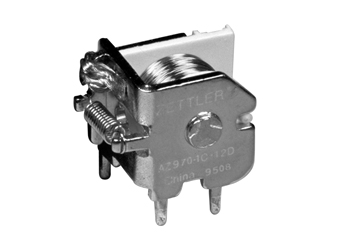

AZ970 - Automotive Relay - active -

Switching Voltage (max.)
150 VDC
Switching Current (max.)
40A
Switched Power (max.)
Nominal Coil Voltage
6 up to 24 VDC
Nominal Coil Power
from 1,6 W
Contact Configuration
1 Form A (SPST/NO)
Contact Gap
-
Type of Enclosure
Open
Dimensions L x W x H
18,8 x 23 x 18 mm
