Relays Series

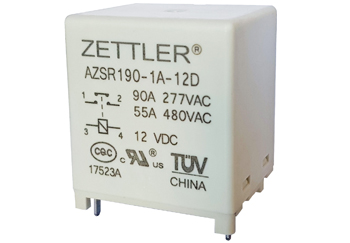

AZSR190
Category
Solar Relay
Switching Voltage (max.)
800VAC
Switching Current (max.)
100A
Switched Power (max.)
48.000 VA
48.000 VA
Nominal Coil Voltage
6 up to 24 VDC
6 up to 24 VDC
Nominal Coil Power
1,92 W
1,92 W
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
3,6mm
Dimensions L x W x H
38 x 33 x 43 mm
