Relays Series

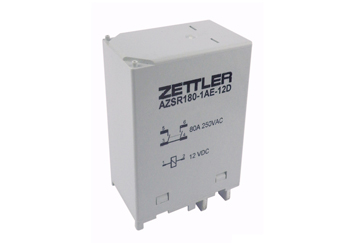

AZSR180
Category
Solar Relay
Switching Voltage (max.)
440VAC
Switching Current (max.)
80A
Switched Power (max.)
22.160 VA
22.160 VA
2.400 W
Nominal Coil Voltage
12 and 24 VDC
12 and 24 VDC
Nominal Coil Power
480 mW
480 mW
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
2,05mm
Dimensions L x W x H
40 x 25 x 49,2 mm
