Relays Series

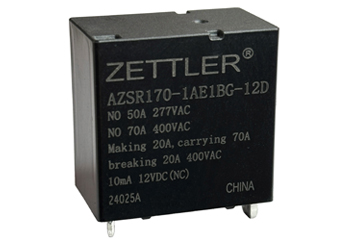

AZSR170
Category
Solar Relay
Switching Voltage (max.)
600VAC
Switching Current (max.)
70A
Switched Power (max.)
42.000 VA
42.000 VA
Nominal Coil Voltage
6 up to 48 VDC
6 up to 48 VDC
Nominal Coil Power
2,5 W
2,5 W
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
3,42mm
Dimensions L x W x H
33,1 x 20,1 x 32,5 mm
