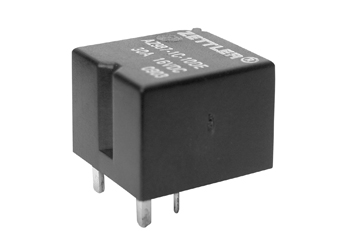

Relays Series
AZ987
Category
Automotive Relay
Switching Voltage (max.)
16VDC
Switching Current (max.)
30A
Switched Power (max.)
480 W
Nominal Coil Voltage
10 up to 12 VDC
10 up to 12 VDC
Nominal Coil Power
from 550 mW
from 550 mW
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Epoxy sealed
Contact Gap
-
Dimensions L x W x H
12,3 x 13,2 x 10,2 mm
