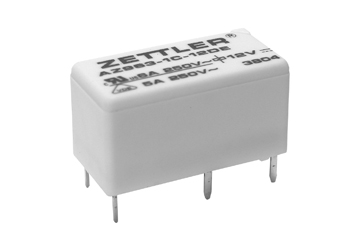

Relays Series
AZ963
Category
Power Relay
Switching Voltage (max.)
380VAC
Switching Current (max.)
6A
Switched Power (max.)
1.500 VA
1.500 VA
180 W
Nominal Coil Voltage
3 up to 48 VDC
3 up to 48 VDC
Nominal Coil Power
200 mW
200 mW
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Epoxy sealed
Contact Gap
-
Dimensions L x W x H
20,3 x 10,2 x 10,7 mm
