Relays Series

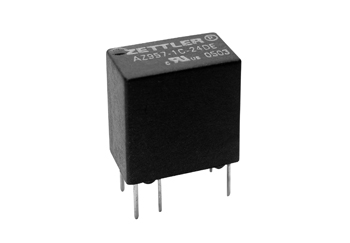

AZ957
Category
Signal Relay
Switching Voltage (max.)
125VAC
Switching Current (max.)
2A
Switched Power (max.)
62 VA
62 VA
30 W
Nominal Coil Voltage
1,5 up to 24 VDC
1,5 up to 24 VDC
Nominal Coil Power
from 150 mW
from 150 mW
Contact Configuration
1 Form C (SPDT)
Type of Enclosure
Epoxy sealed
Contact Gap
-
Dimensions L x W x H
12,8 x 7,8 x 10,3 mm
