Relays Series

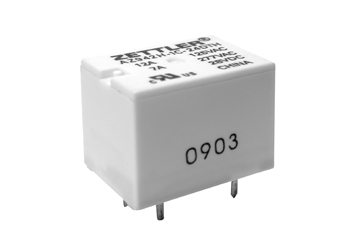

AZ942H
Category
Power Relay
Switching Voltage (max.)
300VAC
Switching Current (max.)
16A
Switched Power (max.)
2.770 VA
2.770 VA
196 W
Nominal Coil Voltage
3 up to 48 VDC
3 up to 48 VDC
Nominal Coil Power
360 mW
360 mW
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
-
Dimensions L x W x H
22 x 16,3 x 16,5 mm
