Relays Series

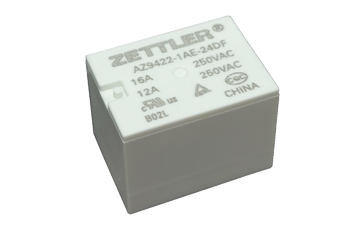

AZ9422
Category
Power Relay
Switching Voltage (max.)
277VAC
Switching Current (max.)
20A
Switched Power (max.)
4.700 VA
4.700 VA
480 W
Nominal Coil Voltage
3 up to 48 VDC
3 up to 48 VDC
Nominal Coil Power
360 mW
360 mW
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
-
Dimensions L x W x H
22 x 16 x 16,6 mm
