Relays Series

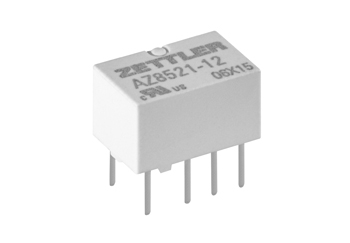

AZ8521
Category
Signal Relay
Switching Voltage (max.)
250VAC
Switching Current (max.)
2A
Switched Power (max.)
62,5 VA
62,5 VA
60 W
Nominal Coil Voltage
1,5 up to 24 VDC
1,5 up to 24 VDC
Nominal Coil Power
from 100 mW
from 100 mW
Contact Configuration
2 Form C (DPDT)
Type of Enclosure
Epoxy sealed
Contact Gap
-
Dimensions L x W x H
10 x 6,5 x 5,4 mm
