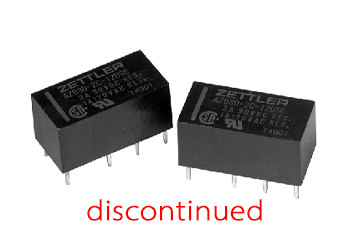

Relays Series
AZ830
Category
Signal Relay
Switching Voltage (max.)
300VAC
Switching Current (max.)
2A
Switched Power (max.)
125 VA
125 VA
60 W
Nominal Coil Voltage
5 up to 48 VDC
5 up to 48 VDC
Nominal Coil Power
from 100 mW
from 100 mW
Contact Configuration
2 Form C (DPDT)
Type of Enclosure
Epoxy sealed
Contact Gap
-
Dimensions L x W x H
20 x 9,9 x 9,8 mm
