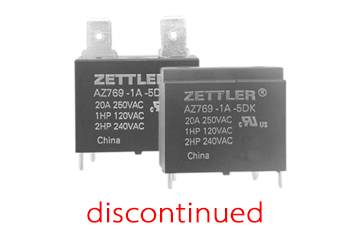

Relays Series
AZ769
Category
Power Relay
Switching Voltage (max.)
400VAC
Switching Current (max.)
25A
Switched Power (max.)
6.925 VA
6.925 VA
750 W
Nominal Coil Voltage
5 up to 24 VDC
5 up to 24 VDC
Nominal Coil Power
900 mW
900 mW
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
-
Dimensions L x W x H
30,5 x 16 x 26,5 mm
