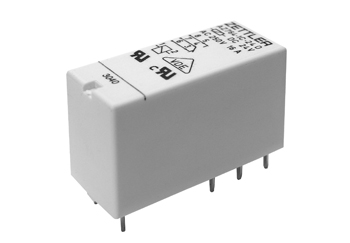

Relays Series
AZ764
Category
Power Relay
Switching Voltage (max.)
400VAC
Switching Current (max.)
20A
Switched Power (max.)
5.000 VA
5.000 VA
480 W
Nominal Coil Voltage
3 up to 110 DC
3 up to 110 DC
12 up to 240 AC
Nominal Coil Power
from 400 mW
from 400 mW
0,75 VA
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
-
Dimensions L x W x H
29 x 12,7 x 15,7 mm
