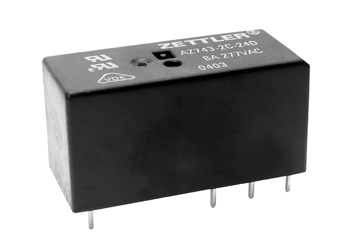

Relays Series
AZ743
Category
Power Relay
Switching Voltage (max.)
440VAC
Switching Current (max.)
10A
Switched Power (max.)
2.770 VA
2.770 VA
240 W
Nominal Coil Voltage
5 up to 110 VDC
5 up to 110 VDC
24 up to 230 VAC
Nominal Coil Power
from 400 mW
from 400 mW
0,75 VA
Contact Configuration
2 Form A (DPST/NO)
Type of Enclosure
Flux proof
Contact Gap
-
Dimensions L x W x H
29 x 12,7 x 15,7 mm
