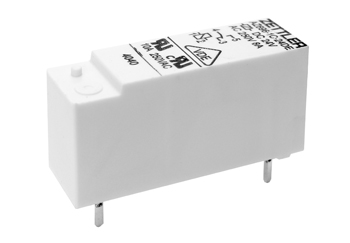

Relays Series
AZ696
Category
Power Relay
Switching Voltage (max.)
440VAC
Switching Current (max.)
10A
Switched Power (max.)
2.500 VA
2.500 VA
300 W
Nominal Coil Voltage
5 up to 48 VDC
5 up to 48 VDC
Nominal Coil Power
from 220 mW
from 220 mW
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
-
Dimensions L x W x H
30 x 10 x 16,2 mm
