Relays Series

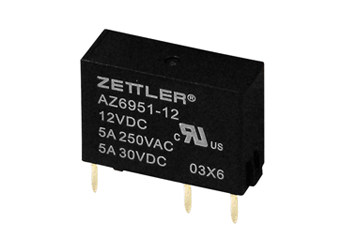

AZ6951
Category
Power Relay
Switching Voltage (max.)
250VAC
Switching Current (max.)
5A
Switched Power (max.)
1.250 VA
1.250 VA
150 W
Nominal Coil Voltage
5 up to 24 VDC
5 up to 24 VDC
Nominal Coil Power
100 mW
100 mW
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Epoxy sealed
Contact Gap
-
Dimensions L x W x H
18,5 x 6,5 x 12,4 mm
