Relays Series

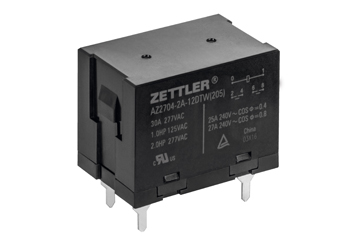

AZ2704
Category
High Power Relay / Solar Relay
Switching Voltage (max.)
400VAC
Switching Current (max.)
27A
Switched Power (max.)
6.925 VA
6.925 VA
810 W
Nominal Coil Voltage
3 up to 200 VDC
3 up to 200 VDC
6 up to 240 VAC
Nominal Coil Power
from 1,8 W
from 1,8 W
from 1,9 VA
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
3mm
Dimensions L x W x H
50,5 x 33,5 x 36 mm
