Relays Series

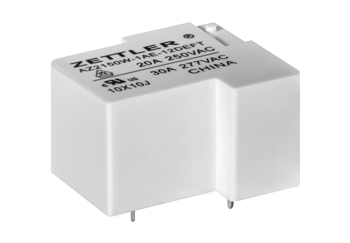

AZ2150W
Category
High Power Relay / Solar Relay
Switching Voltage (max.)
440VAC
Switching Current (max.)
30A
Switched Power (max.)
8.310 VA
8.310 VA
900 W
Nominal Coil Voltage
5 up to 48 VDC
5 up to 48 VDC
Nominal Coil Power
1,1 W
1,1 W
Contact Configuration
1 Form A (SPST/NO)
Type of Enclosure
Flux proof
Contact Gap
1,75mm
Dimensions L x W x H
31,8 x 26,9 x 19,1 mm
